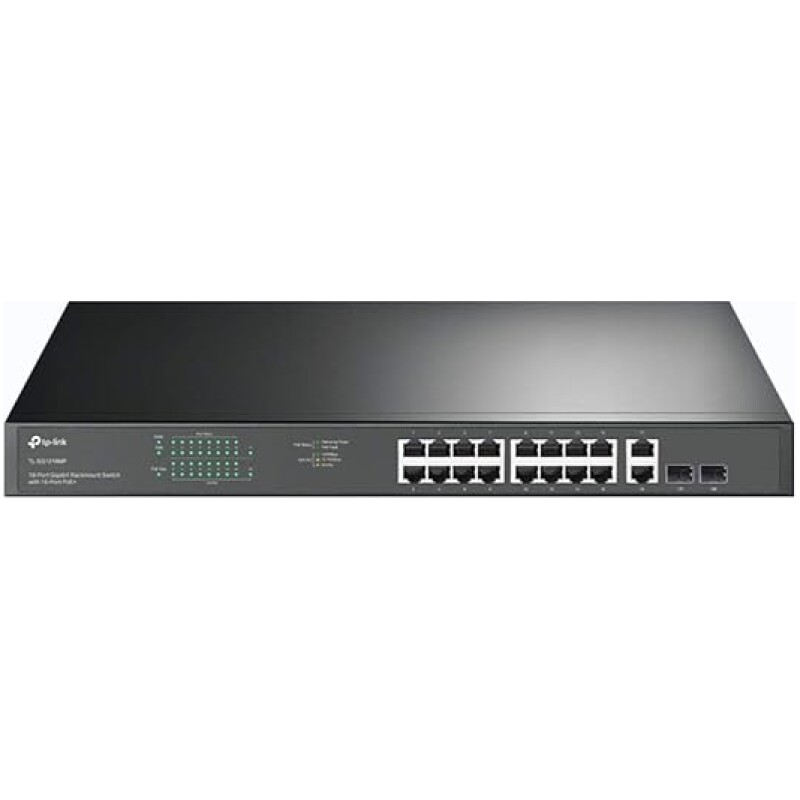

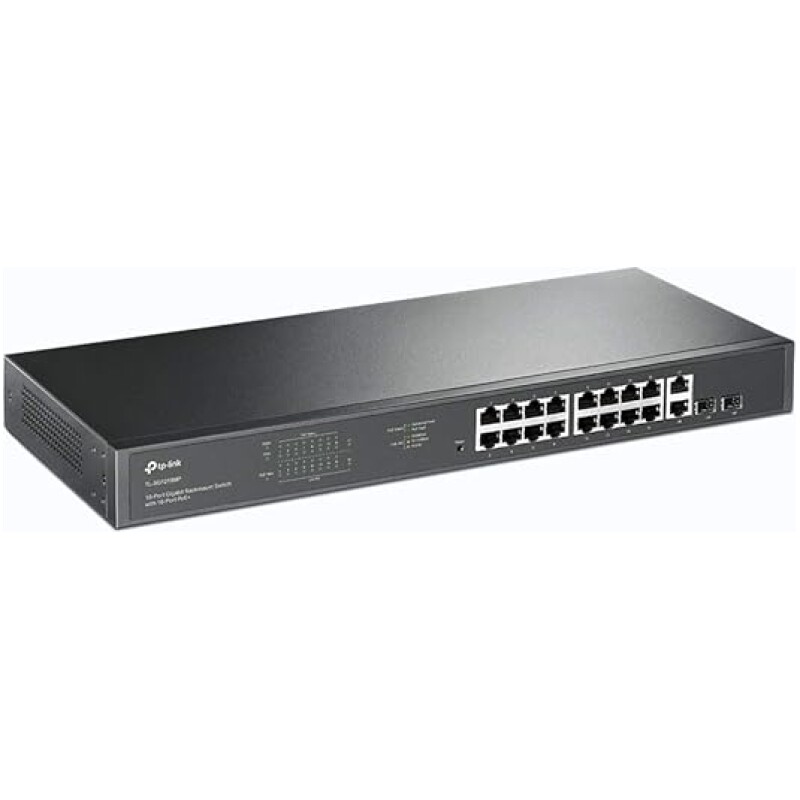

TP-Link TL-SG1218MP 18-Port Metal Gigabit Rackmount PoE Switch with 16 PoE (250W)

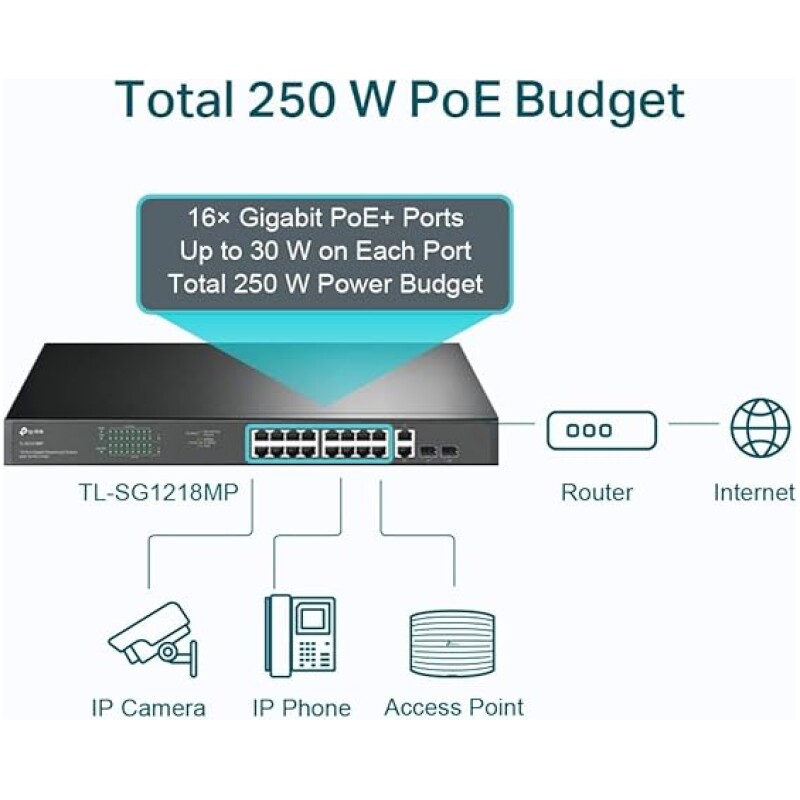

18-Port Gigabit Rackmount PoE Switch with 16 PoE Key Features 16 x gigabit PoE RJ45 ports, 2 x gigabit non-PoE RJ45 ports, and 2x combo gigabit SFP slots High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports Working with IEEE 802.3af/at compliant PDs Plug and play, with no configuration and installation needed 802.1p/DSCP QoS enable smooth latency-sensitive traffic Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ?) Dedicated 16-Port PoE Switch (250 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16x gigabit PoE ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc. QoS for a Lag-Free Experience Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS). Intelligent Power Management to Prevent Power Overload When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. Wide Operating Temperature with Good Heat Dissipation Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50?) with reliability. Multiple Application Scenarios The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. Specifications HARDWARE FEATURES Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p Interface • 16 x PoE gigabit RJ45 ports • 2 x gigabit non-PoE RJ45 ports • 2 x combo gigabit SFP slots Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100O STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100O STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100O STP (maximum 100m) • 1000BASE-X MMF, SMF Fan Quantity 2 Physical Security Lock Yes Power Supply 100–240 VAC, 50/60 Hz PoE Ports(RJ45) • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W Dimensions ( W x D x H ) 17.3 x 7.1 x 1.73 in (440 x 180 x 44 mm) Mounting Rack Mountable Max Power Consumption • 21.4 W (220/50 Hz. no PD connected) • 286.64 W (220/50 Hz. with 250 W PD connected) Max Heat Dissipation • 72.97 BTU/h (no PD connected) • 977.44 BTU/h (with 250 W PD connected) PERFORMANCE Switching Capacity 36 Gbps Packet Forwarding Rate 26.78 Mbps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs • 802.1p/DHCP QoS • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode Jumbo Frame 10 KB OTHERS Certification CE, FCC, RoHS Package Contents • TL-SG1218MP • Installation Guide • Power Cord • Rackmount Kit • Rubber Feet Environment • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
