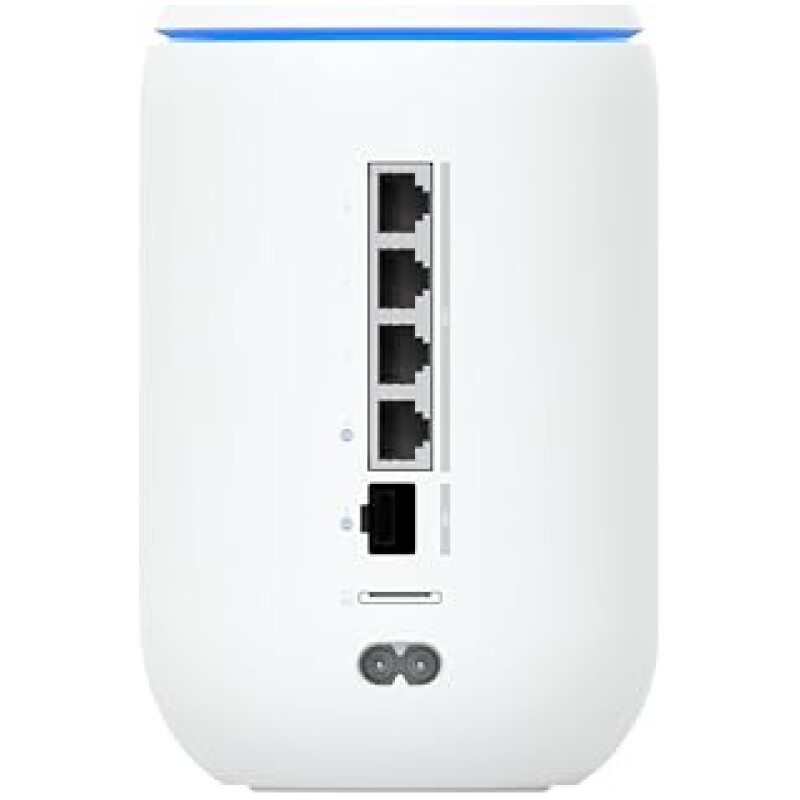

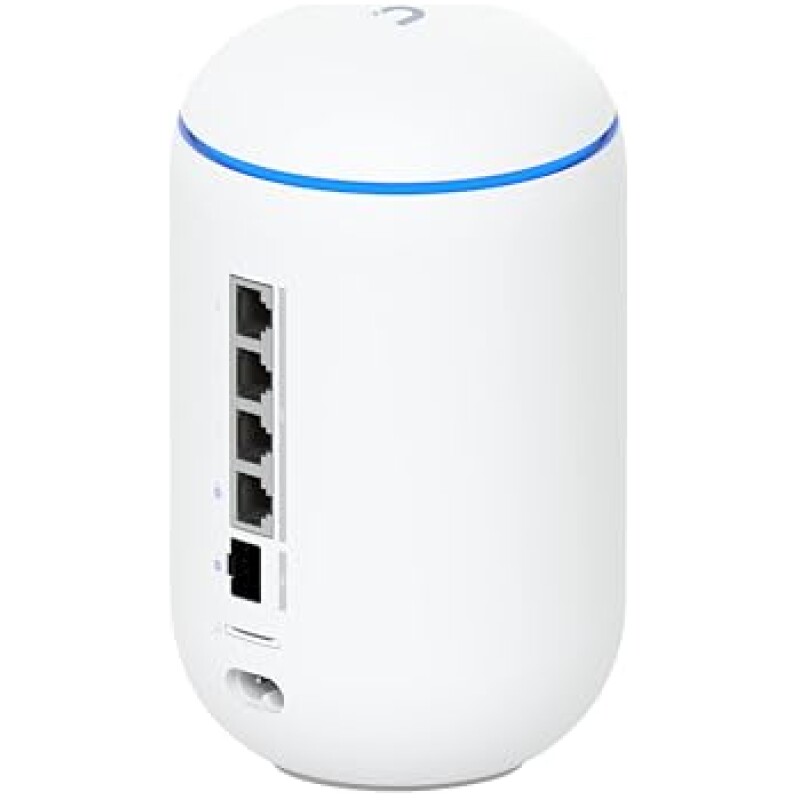

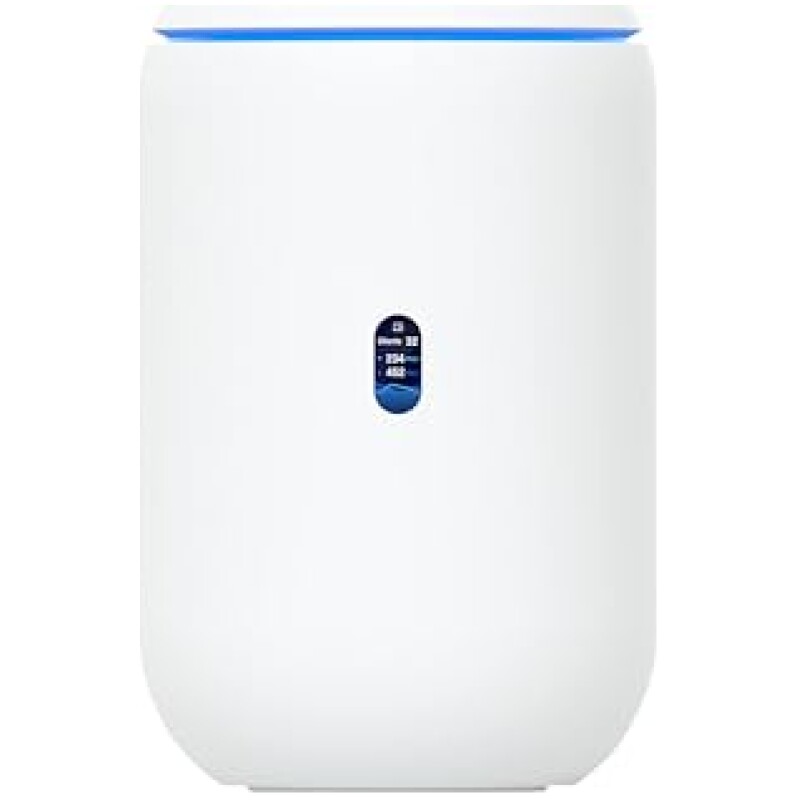

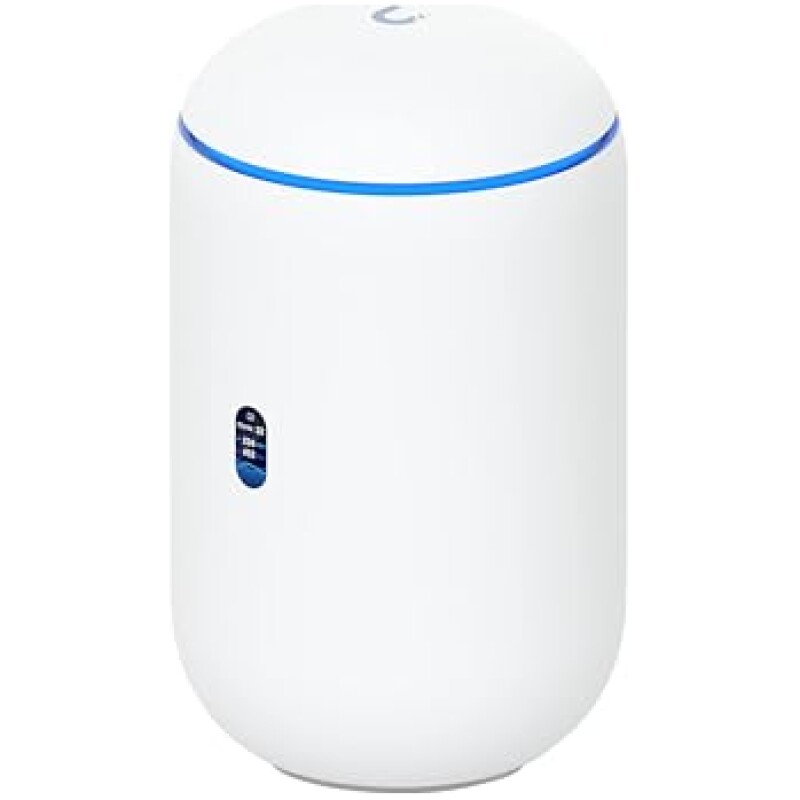

Ubiquiti UDR7 UniFi Dream Router 7 Combined 2.5 GBE Switch, NVR, Router, WiFi 7 Access Point and Gateway

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support. Dimensions d110 x 184.1 mm (d4.3 x 7.3″) UniFi Application Suite Network Yes Protect Yes Access Yes Talk Yes Connect Yes Managed UniFi Devices 30 Managed Cameras (5) HD (2) 2K (1) 4K Simultaneous Users Connected 300 Default WAN Ports (1) 10G SFP (1) 2.5 GbE RJ45 LAN Ports (3) 2.5 GbE RJ45 including (1) PoE IDS/IPS Throughput 2.3 Gbps Form Factor Compact desktop Stateful Firewall Yes Application-Aware Layer 7 Firewall Yes DPI and Traffic Identification Yes Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes Content Filtering Yes Intrusion Prevention (IPS/IDS) Yes Ad Blocking Yes IDS/IPS Signatures 20,000 with CyberSecure VLAN/Subnet-based Traffic Segmentation Yes License-Free SD-WAN Yes Site to Site VPN Site Magic Yes IPsec Yes OpenVPN Yes VPN Server Identity Endpoint One-Click VPN Yes Teleport Zero-Configuration VPN Yes WireGuard Yes OpenVPN Yes L2TP Yes VPN Client OpenVPN Yes WireGuard Yes Multi-WAN Load Balancing Yes Dynamic Routing – OSPF Yes Advanced QoS Yes Multicast DNS (mDNS) Yes Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Yes Integrated RADIUS Server Yes RADIUS over TLS (RadSec) Yes Additional Internet Failover with UniFi LTE Backup Yes Internet Quality and Outage Reporting Yes MAC Address Table Size 2000 Policy-based WAN and VPN Routing Yes Customizable DHCP Server Yes IPv6 ISP Support Yes IGMP Proxy Yes WiFi Standard 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) Throughput 6 GHz 5.7 Gbps 5 GHz 4.3 Gbps 2.4 GHz 688 Mbps MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Antenna Gain 6 GHz 6 dBi 5 GHz 7 dBi 2.4 GHz 5 dBi Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) Max. BSSIDs 4 per Radio Supported Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) 802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320) NVR Storage Pre-installed 64GB microSD for NVR Expansion Slot MicroSD Card PoE Budget 15.4W Voltage Range POE Mode 44-57V Max. Power Consumption 26W (Excluding PoE output) Power Method Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz Max. TX Power 6 GHz 24 dBm 5 GHz 26 dBm 2.4 GHz 23 dBm Supported Voltage Range 100-240V AC Processor Quad-core ARM Cortex-A53 at 1.5 GHz System Memory 3 GB Weight 1.1 kg (2.4 lb) Enclosure Material Polycarbonate LCM Display 0.96″ status display Management Ethernet Bluetooth System LEDs System Certifications CE, FCC, IC
